CAN bus K-Line
Manufacturer: CarLabImmo (go to products)

Julie JAPAN KOREA | IMMO OFF Emulator

Price €49.90
pcs.
Availability:
product-availability-module In Stock
Shipping time: 24 hours
Payment Methods

Cechy produktu

Features

  • Supported ECU Transmission CAN, K-Line
  • Built-in Memory 24C02 (EEPROM)

Features

  • Supported ECU Transmission CAN, K-Line
  • Built-in Memory 24C02 (EEPROM)

Julie™ JAPAN KOREA

Immo Off Emulator for Japanese and Korean vehicles. From a Daewoo Matiz to a Yamaha YZF R1.

Julie™ JAPAN KOREA is a brand-specific emulator from CarLabImmo that replaces the immobiliser signal in Japanese and Korean vehicle ECUs. One emulator works with Bosch, Continental, Delphi, Denso, Hitachi, Kefico, Kemsco, Lucas, Mitsubishi, Siemens, Sirius and Zexel ECUs in Daewoo, Honda, Hyundai, KIA, Mazda, Nissan, Suzuki and Toyota, plus the Chevrolet, Subaru and Yamaha models listed below.

NATS 4, 5 and 6 Built-in 24C02 EEPROM Developed in Poland
Julie JAPAN KOREA immo off emulator

How it works

Step 1

Find your ECU

Check the ECU number on the label. Pick your car brand below, or search this page for the number.

ℹ️ The ECU numbers listed are tested. Other numbers of the same ECU type may work too. To confirm, create a free ticket on our forum.

Step 2

Install Julie

Follow the manual for your ECU type. It is always up to date. Videos give a quick overview of the job.

Step 3

Immo Off with Julie

Julie gives the ECU the immobiliser signal it expects, enabling car start.

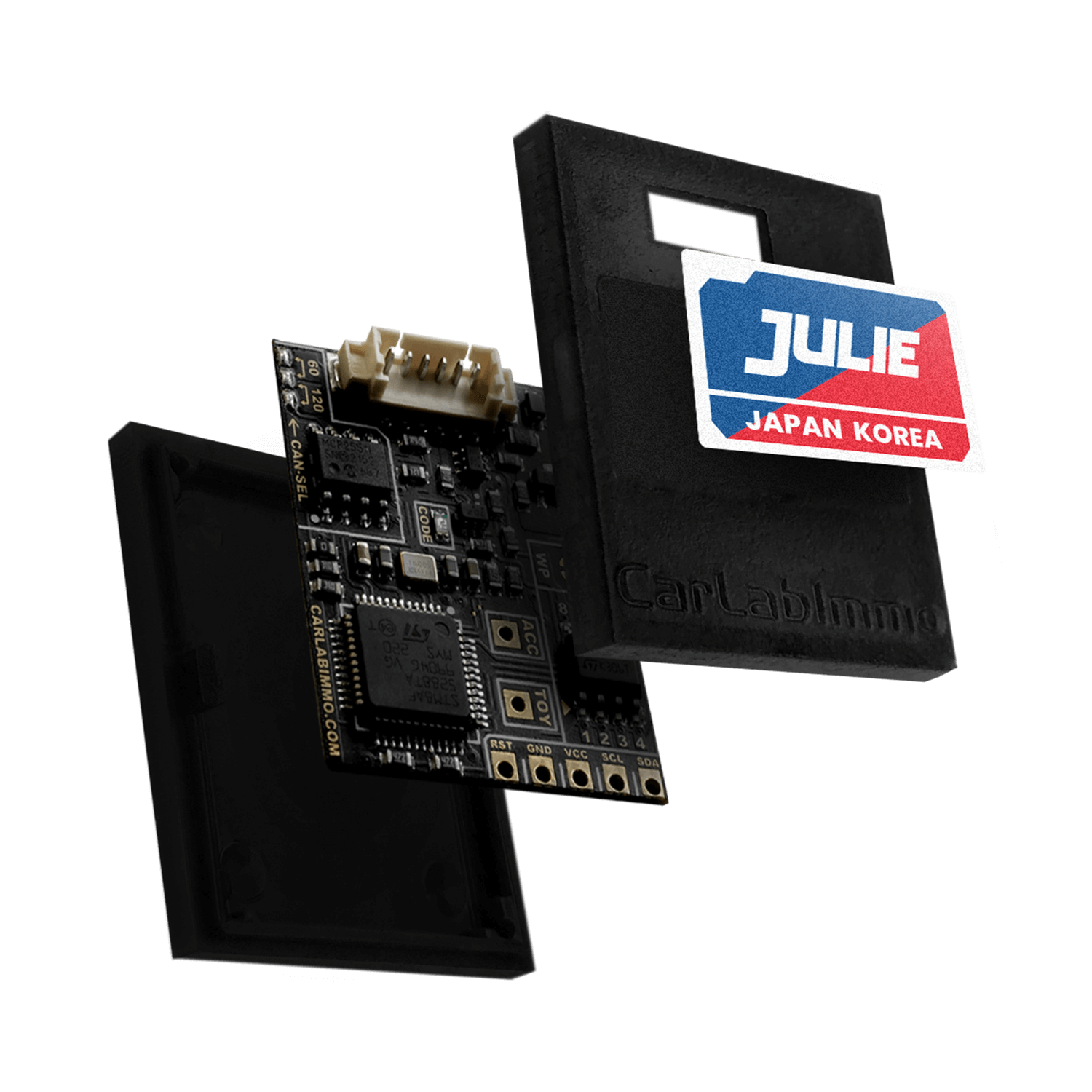

Built to last, down to the PCB

Julie™ Emulator – Product Design Features

The board inside Julie™ is made for life in a car, not on a shelf.

Automotive MCU

Improved performance and stability, even in harsh weather conditions.

Gold-plated solder pads

Gold resists oxidation, so Julie™ keeps working for decades.

Externally programmable EEPROM

Program selection and values are written to the 24C02 EEPROM on board. With the 24C02 EEPROM Memory Adapter for Julie™ Emulator, you no longer need to solder jumpers or unsolder the EEPROM.

Find by car brand

Pick the ECU type to jump to its car list and ECU numbers.

Supported ECUs

Grouped by ECU manufacturer. Always install Julie following the manual for your ECU type. It has the current procedure.

Bosch ECUs

Bosch EDC15M1-5.x / EDC15V-1.5.x (Nissan)

ECU types

  • EDC15M1-5.x
  • EDC15V-1.5.x

Bosch EDC16CP33 (Nissan)

ECU types

  • EDC16CP33

Bosch with 24LC02 memory (1.4 gasoline) (NATS 4 / NATS 5, Nissan)

ECU types

  • Bosch with 24LC02 memory (1.4 gasoline) (NATS 4 / NATS 5)

Bosch EDC16C10-6.2 (Toyota)

ECU list

  • EDC16C10-6.2 [Immo Box 89780-12140]

Bosch EDC16C10-9.3 (Toyota)

ECU list

  • EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]

Bosch EDC17CP07 (Toyota)

ECU list

  • EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]

Bosch EDC17CP37 (Toyota)

ECU list

  • EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]

Bosch M 7.9.41 (Toyota)

ECU list

  • M 7.9.41 [Computer Assy, Transponder Key 89780-02040]

Bosch / Kefico ECUs

Bosch / Kefico EDC15C7 (Hyundai / KIA)

ECU types

  • EDC15C7

Continental ECUs

Continental D52 (Daewoo)

ECU types

  • D52

Continental SID310 (Nissan)

ECU types

  • SID310
  • SID310 (CAN NATS)

Continental SID321 (Nissan)

ECU types

  • SID321
  • SID321 (CAN NATS)

Daewoo ECUs

Blue-socket ECU (with Motorola HC11F1 processor)

ECU types

  • Blue-socket ECU (with Motorola HC11F1 processor)

White-red-socket ECU (with Motorola HC11F1 processor)

ECU types

  • White-red-socket ECU (with Motorola HC11F1 processor)

Delphi ECUs

Delphi HYBRID ECU

Cars

  • Daewoo Lanos 1.4 OHC Gasoline
  • Daewoo Rezzo 2.0 DOHC Gasoline

Delphi R1 GTFX

Cars

  • Chevrolet Aveo

Denso ECUs

Denso ECUs (Mazda)

ECU list

  • B33M 18 881A
  • B34A 18 881B
  • B34B 18 881A
  • B35B 18 881C
  • B35J 18 881B
  • B5F3 18 881C
  • B5F4 18 881B
  • B6MM 18 881A
  • B6MU 18 881B
  • BP5C 18 881A
  • BP5D 18 881A
  • BP6J 18 881C
  • BP6M 18 881B
  • BP7P 18 881C
  • FP87 18 881B
  • FP88 18 881B
  • FPG6 18 881B
  • RF3R 18 881A
  • RF4D 18 881
  • RF4F 18 881D
  • RF4P 18 881C
  • RF4S 18 881B
  • RF4W 18 881C
  • RF5W 18 881A
  • RF6A 18 881B
  • ZM39 18 881C
  • ZM40 18 881C
  • ZMWM 18 881A

Denso 33920.x (Suzuki)

ℹ️ Julie™ supports vehicles with 4C/4D key.

Variants

  • 33920.x (93C56 EEPROM + 29F200 Flash) (Metal Cover)
  • 33920.x (93C56 EEPROM + 29F200 Flash) (Plastic Cover)
  • 33920.x (93C56 EEPROM) (Metal Cover)
  • 33920.x (93C56 EEPROM) (Subaru)

Denso ECUs (Toyota)

ECU list

  • 89661-02A60 [Immo Box 89780-12140]
  • 89661-05D30 [Computer Assy, Transponder Key 89780-05050]
  • 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]
  • 89661-12B00 [Immo Box 89780-12180]
  • 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

Hitachi ECUs

Hitachi MEC (NATS 6, Nissan)

ECU types

  • MEC32-210 -> MEC32-680 (NATS 6)
  • MEC36-xxx (NATS 6)
  • MEC43-xxx (NATS 6)
  • MEC81-730 (NATS 6)

Hitachi MEC with 93C46 and 93C56 EEPROM memory (NATS 4 and 5, Nissan)

ECU types

  • MEC with 93C46 and 93C56 EEPROM memory - 1.5 | 1.8 | 2.0 gasoline (NATS 4 and 5)

Hitachi 33920.x (Suzuki)

⚠️ Julie™ does not support vehicles with Opel immobilizer (TMS).

Variants

  • 33920.x (93LC46 EEPROM)
  • 33920.x (OKI Memory)
  • 33920.x (24C04 EEPROM)
  • 33920.x (X24C01 EEPROM)

Honda ECUs

Honda Accord / CRV / Civic

Cars

  • Honda Accord 1999-2002
  • Honda CRV 1999-2002
  • Honda Civic 1999-2002

Kefico ECUs

Kefico ME 7.9.0 (Hyundai / KIA)

ECU types

  • ME 7.9.0

Kemsco ECUs

Kemsco D3

Cars

  • Daewoo Matiz
  • Daewoo Tacuma

Lucas ECUs

Lucas ECUs (Mazda)

ECU list

  • ZL13 18 881A
  • ZLO5 18 881A

Mitsubishi ECUs

Mitsubishi ECUs (Mazda)

ECU list

  • WLE7 18 881A
  • WLF2 18 881A

Siemens ECUs

Siemens 4R

Cars

  • Chevrolet Aveo 1.2 Gasoline

Siemens 42R

Cars

  • Chevrolet Aveo

Siemens D32

Cars

  • Chevrolet Spark 0.8 Gasoline

Siemens with TMS374

Cars

  • Daewoo Matiz

Sirius ECUs

Sirius D42

Cars

  • Daewoo Kalos 1.2 Gasoline

Yamaha ECUs

Yamaha motorbikes & scooters 2004-2010

Models (examples)

  • Yamaha YZF R1 / YZF R6
  • Yamaha FZ6 N / FZ6 S
  • Yamaha T-MAX
  • Yamaha X-MAX
  • Yamaha V-MAX

Zexel ECUs

Zexel ECU

Cars

  • Kia Sportage 2.0 TD
Julie manual

Manual and full ECU list

Emulator Installation steps for every supported ECU type, plus the full ECU list.

Open the manual
Immo Bypass

Didn't find your ECU?

Check Immo Bypass, our database of software immo off solutions and original ECU files.

Check your ECU in Immo Bypass
