Julie FORD MAZDA | IMMO OFF Emulator
Features
- Supported ECU Transmission CAN, K-Line
- Built-in Memory 24C02 (EEPROM)
Julie™ FORD MAZDA
Immo Off Emulator for Ford and Mazda. From a Ford KA to a Ford Galaxy, from a Mazda 323 to an MX5.
Julie™ FORD MAZDA is a brand-specific emulator from CarLabImmo that replaces the immobiliser signal in Ford and Mazda ECUs. It works with Siemens and Visteon ECUs in Ford, plus Denso, Lucas and Mitsubishi ECUs in Mazda. It also covers Ford cars with PATS and a 4C key transponder, and selected donor ECUs for engine swap projects.
How it works
Step 1
Find your ECU
Check the ECU number on the label. Pick your car brand below, or search this page for the number.
ℹ️ The ECU numbers listed are tested. Other numbers of the same ECU type may work too. To confirm, create a free ticket on our forum.
Step 2
Install Julie
Follow the manual for your ECU type. It is always up to date. Videos give a quick overview of the job.
Step 3
Immo Off with Julie
Julie gives the ECU the immobiliser signal it expects, enabling car start.

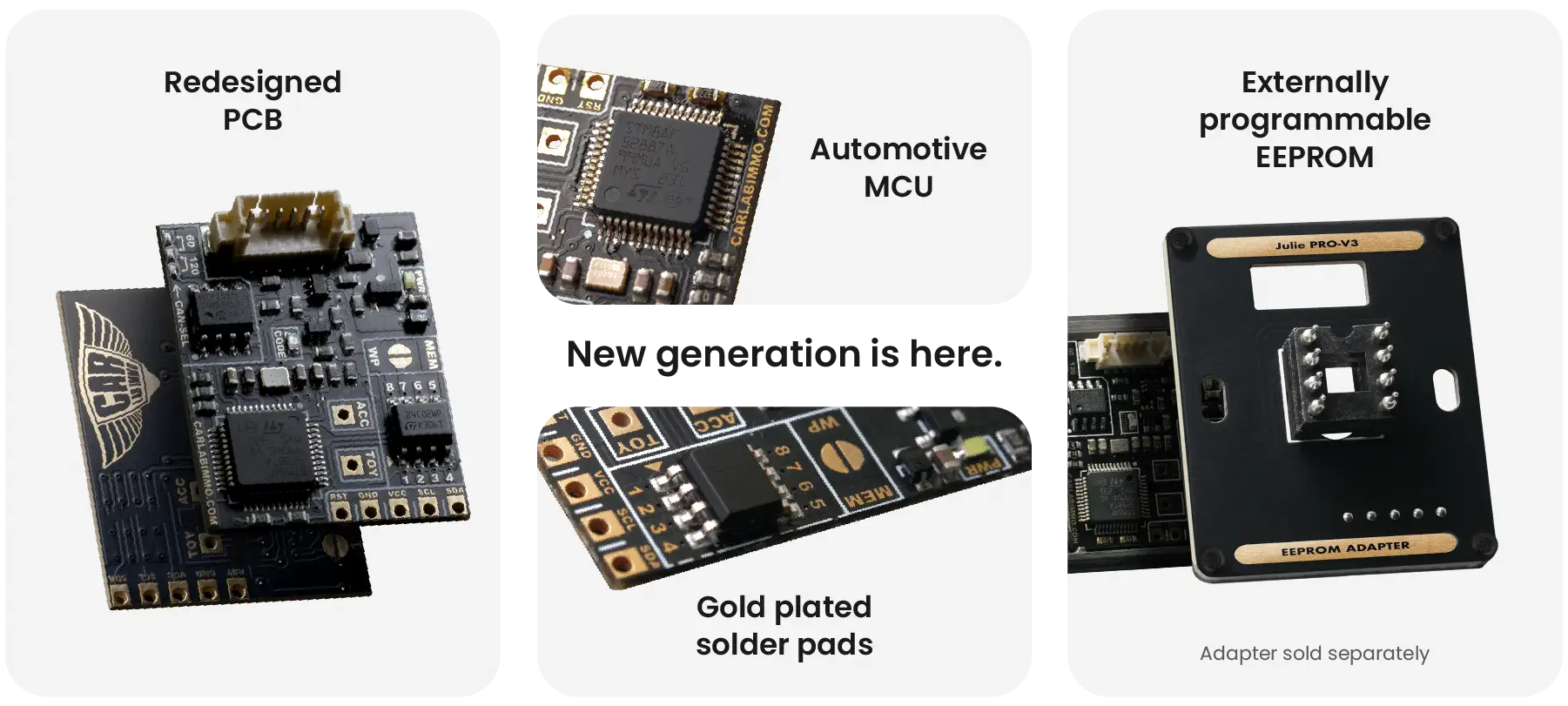

Built to last, down to the PCB
The board inside Julie™ is made for life in a car, not on a shelf.
Automotive MCU
Improved performance and stability, even in harsh weather conditions.
Gold-plated solder pads
Gold resists oxidation, so Julie™ keeps working for decades.
Externally programmable EEPROM
Program selection and values are written to the 24C02 EEPROM on board. With the 24C02 EEPROM Memory Adapter for Julie™ Emulator, you no longer need to solder jumpers or unsolder the EEPROM.
Find by car brand
Pick the ECU type to jump to its car list and ECU numbers.
Supported Applications
Always install Julie following the manual for your ECU type. It has the current procedure.
Ford
Ford ABS ID + immo module in BCU (Donor ECU, Project use only)
Cars
- Ford Galaxy 2007-2016
- Ford Mondeo 2007-2016
- Ford S-Max 2007-2016
Ford PATS (4C key transponder)
Cars
- Ford Cougar 2.5 170HP 1998-2002
- Ford Fiesta 1.3 60HP 1995-2001
- Ford KA 1.3 60HP 1996-2002
- Ford Mondeo II 2.0 170HP 1996-1999
- Ford Mondeo II 2.0 131HP 1996-1998
- Ford Puma 1.7 125HP 1997-2001
- Mazda 626 2.0 136HP 1997-2002
ECU numbers
- DUDE 97FB-12A650-HB – Ford Puma 1.7 125HP 1997
- FIFA XS5F-12A650-FA – Ford KA 1.3 60HP 1999
- GWP1 98BB-12A650-BVB – Ford Mondeo II 2.0 131HP 1998
- MUFF 97FB-12A650-HC – Ford Puma 1.7 125HP 1998
- SHAY XS6F-12A650-AKB – Ford Fiesta 1.3 60HP 1999
- TPM8 F7FF-12A650-FJ – Mazda 626 2.0 136HP 2000
- USES 98BB-12A650-AAE – Ford Mondeo II 2.5 170HP 1999
- USSR 98BB-12A650-AAC – Ford Cougar 2.5 170HP 1998
Siemens ECUs
Siemens SID202 (Ford, Immo module in dashboard, Mechanical key or ECU-only change)
Cars
- Ford Focus 1.8 TDCI 115HP 2004-2010
ECU numbers
- 5WS40512A-T | 6M51-12A650-YA – Ford Focus 1.8 TDCI 115HP 2006
ℹ️ This video is for reference only. Always check the manual first.
Siemens SID206 (Ford, Immo module in dashboard, Mechanical key or ECU-only change)
Cars
- Ford Fiesta 1.4 TDCI 70HP 2010-2012
ECU numbers
- 5WS40584B-T | 8V21-12A650-EB – Ford Fiesta 1.4 TDCI 70HP 2010
Siemens SID803 / 803A (Ford, Immo module in dashboard, Mechanical key or ECU-only change)
Cars
- Ford Focus 2004-2008
ECU numbers
- 5WS40557A-T | 6M51-12A550-AEA – Ford Focus 2.0 TDCi 136HP 2007
ℹ️ This video is for reference only. Always check the manual first.
Visteon ECUs
Visteon DCU-101 (Ford, Donor ECU with immo module in BCU, Project use only)
Cars
- Ford Transit
ℹ️ This video is for reference only. Always check the manual first.
Mazda ECUs
Mazda Denso, Lucas and Mitsubishi ECUs
Cars
- Mazda 323
- Mazda 323F
- Mazda 6
- Mazda Demio
- Mazda 626
- Mazda MX5
- Mazda MPV
- Mazda Premacy
ECU numbers
- Denso B33M – 18 881A
- Denso B34A – 18 881B
- Denso B34B – 18 881A
- Denso B35B – 18 881C
- Denso B35J – 18 881B
- Denso B5F3 – 18 881C
- Denso B5F4 – 18 881B
- Denso B6MM – 18 881A
- Denso B6MU – 18 881B
- Denso BP5C – 18 881A
- Denso BP5D – 18 881A
- Denso BP6J – 18 881C
- Denso BP6M – 18 881B
- Denso BP7P – 18 881C
- Denso FP87 – 18 881B
- Denso FP88 – 18 881B
- Denso FPG6 – 18 881B
- Denso RF3R – 18 881A
- Denso RF4D – 18 881
- Denso RF4F – 18 881D
- Denso RF4P – 18 881C
- Denso RF4S – 18 881B
- Denso RF4W – 18 881C
- Denso RF5W – 18 881A
- Denso RF6A – 18 881B
- Denso ZM39 – 18 881C
- Denso ZM40 – 18 881C
- Denso ZMWM – 18 881A
- Lucas ZL13 – 18 881A
- Lucas ZLO5 – 18 881A
- Mitsubishi WLE7 – 18 881A
- Mitsubishi WLF2 – 18 881A
Manual and full ECU list
Emulator Installation steps for every supported ECU type, plus the full ECU list.
Open the manual
Didn't find your ECU?
Check Immo Bypass, our database of software immo off solutions and original ECU files.
Check your ECU in Immo Bypass⚠️ Disclaimer
The products offered by CarLabImmo Sp. z o.o. are professional automotive diagnostic, repair and programming tools, intended exclusively for use by qualified automotive professionals — including licensed locksmiths, vehicle repair workshops and ECU/immobilizer repair specialists. By purchasing, the buyer confirms that they are a professional user and agrees to use the product in full compliance with all applicable local, national and international laws. Any use of these products for unauthorized vehicle access or any other unlawful purpose is strictly prohibited and is the sole responsibility of the buyer. CarLabImmo does not condone and accepts no liability for any misuse of its products.
