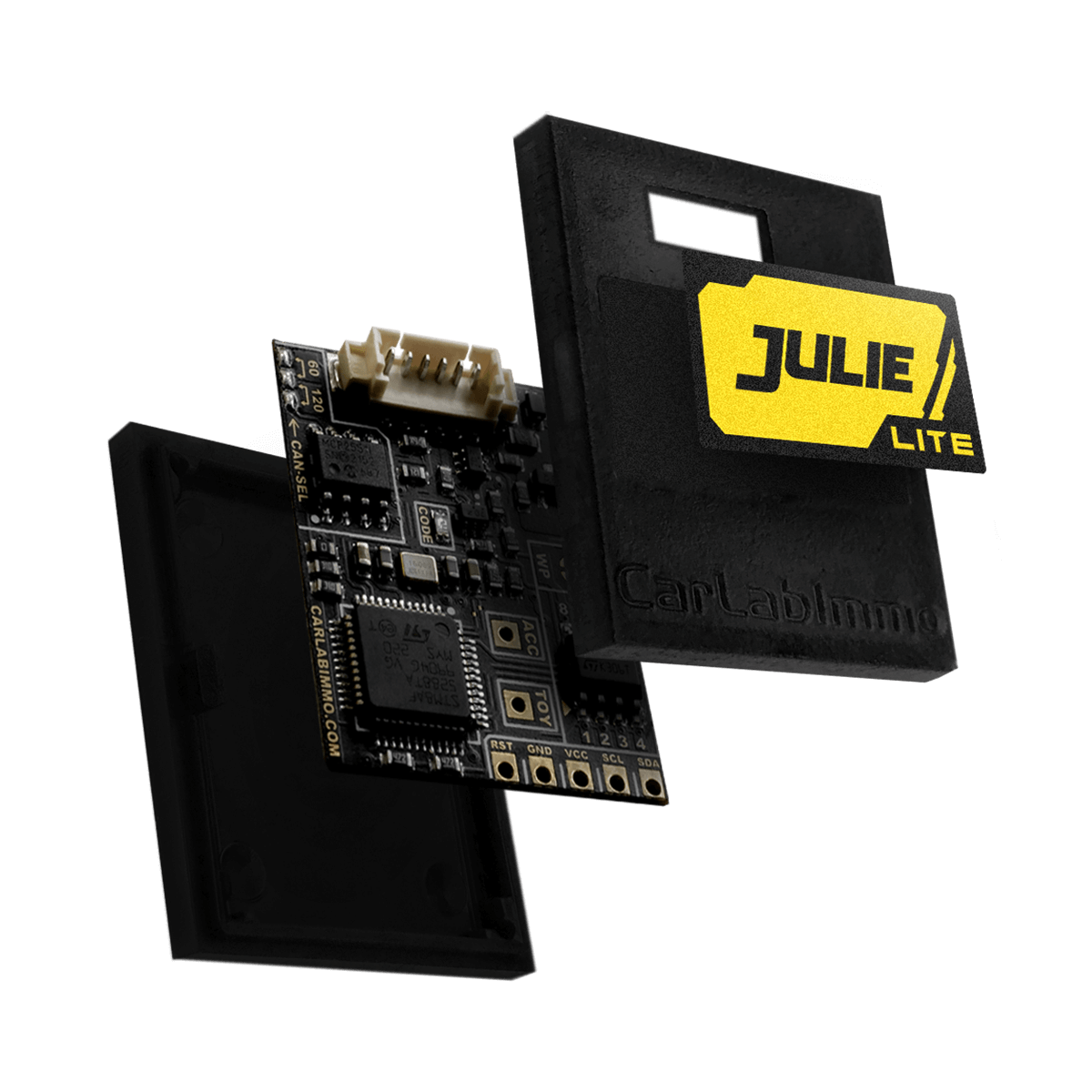

Julie LITE | IMMO OFF Emulator
Description
All CarLabImmo's CAN transmission solutions in one Emulator!
Julie Lite supports ECUs with CAN transmission mounted in following car brands:
BMW | Ford | Fiat Group | VAG Group | PSA Group | Mercedes | Renault Group | Volvo
Instruction Manual and full ECU list: https://carlabimmo.com/julie-manual
BMW Solutions
Brands: BMW
F-Series
- Engine + 8HP EGS Swap
Engine-only Swap
EGS-only Swap
E-Series*
- Engine + 8HP EGS Swap
Engine-only Swap
EGS-only Swap
*Except BMW X3 (E83)
Ford / Mazda Solutions
Brands: Ford
Supported ECUs:
1) Ford cars with immo located inside the dashboard:
Siemens
- Siemens VDO SID803/803A
Siemens SID206
Siemens SID202
2) Original car's ECU (donor) must be equipped with immo module located in BCU
(Can only be used for a project, e.g. installing the engine in a boat etc.)
Visteon
- Visteon DCU-101
3) Original car's ECU (donor) must be equipped with ABS ID and immo module located in BCU
(Can only be used for a project, e.g. installing the engine in a boat etc.)
Donor cars:
Ford Galaxy 2007-2016
Ford Mondeo 2007-2016
Ford S-Max 2007-2016
Fiat Group Solutions
Brands: Alfa Romeo / Fiat / Ferrari / Iveco / Jeep / Lancia / Maserati
Supported ECUs:
Bosch
- Bosch EDC16C8
- Bosch EDC16C34
- Bosch EDC16C39
- Bosch EDC17C49
- Bosch EDC17C49 (Iveco)
- Bosch EDC17C69 (cars equipped with SGW Module)
- Bosch EDC17C79
- Bosch ME7.3.1
- Bosch ME7.3H4
- Bosch ME7.9.10
- Bosch ME9.1.1
- Bosch ME17.3.0
- Bosch ME7.1.1 (Ferrari / Maserati)
- Bosch MED7.6.1
Continental
- Continental GPEC3 (Fiat + PSA Group)
- Continental SID208 (Fiat + PSA Group)
Delphi
- Delphi DCM6.2C (PSA Group)
Magneti Marelli
- Magneti Marelli 8F3
- Magneti Marelli 8GMC
- Magneti Marelli 8GMF
- Magneti Marelli 8GSW
- Magneti Marelli 9GF / 9GF.xx
- Magneti Marelli 10JA
- Magneti Marelli 11GF / 11GF.xx
- Magneti Marelli IAW 5SF
- Magneti Marelli IAW 5NF
Magneti Marelli IAW 7GF - Magneti Marelli MJD 6F3
- Magneti Marelli MJD 8F2
- Magneti Marelli MJD 9DF
Visteon
- Visteon DCU 102
Get the Emulator installed in your ECU for FREE!
If you have one of the following ECU types, we can install the Emulator for you!
Purchase the Emulator and ship the ECU to us - our Team will install the Emulator in your ECU for FREE and ship it back to you!
ECU types eligible for Free Emulator Installation:
Bosch
Bosch EDC17CP52
Bosch EDC16C7
Bosch EDC15C7
Bosch EDC15C5
Bosch MED17
Bosch MED17.31
Bosch MED9.6
Bosch MED7.6.2
Bosch ME7.6.3
Bosch ME7.3.4
Bosch ME2.1
Bosch M1.5.5
Delphi
Delphi DCM7.1B
Delphi DCM6.2A
Delphi DCM3.5
Magneti Marelli
Magneti Marelli MJD 8DF
Magneti Marelli MJD 8GMK
Magneti Marelli IAW 6J
Magneti Marelli IAW 5NF.T1
Magneti Marelli IAW 5SF3
Magneti Marelli IAW 5SF4
Magneti Marelli IAW 5SF8
Magneti Marelli IAW 5SF9
Magneti Marelli IAW 59F
Magneti Marelli IAW 49F
Magneti Marelli 8GSF
Mopar
Mopar GPEC4LM
Mopar 11GFAC
Siemens
Siemens SID803A
VAG Group solutions:
Brands: Audi / Seat / Skoda / Volkswagen
Supported ECUs and TCUs:
All ECUs with WFS5 (5th-gen immo) / MQB Platform
The emulator gives authorisation to ECU and TCU at the same time!
Supported ECUs:
Continental Simos 18.1 | Immo 5th gen | MQB Platform*
Bosch EDC17 | Immo 5th gen | MQB Platform
Bosch MED17 | Immo 5th gen | MQB Platform
Bosch ME17 | Immo 5th gen | MQB Platform
Supported TCUs:
DQ200 | Immo 5th gen | MQB Platform
DQ250 | Immo 5th gen | MQB Platform
VL300 | Immo 5th gen | MQB Platform
VL381 | Immo 5th gen | MQB Platform
DL382 | Immo 5th gen | MQB Platform
DL501 | Immo 5th gen | MQB Platform
Tested on:
Continental Simos 18.1
Bosch EDC17CP44
Bosch EDC17CP20
Bosch ME17.5.24
* Read CS, MAC, POWER CLASS, VIN yourself! Available for FREE in Toolbox section of Immo Bypass
WFS5 - IMMO GEN 5:
Bosch ECU (MQB Platform)
- Bosch EDC17
- Bosch ME17
- Bosch MED17
Continental ECU (MQB Platform)
- Continental Simos 18.1
TCU (MQB Platform)
- DQ200
- DQ250
- DL382
- DL501
- VL300
- VL381
WFS5 - IMMO GEN 4:
Bosch
- Bosch ME17.1.6
- Bosch MED17.5.5
- Bosch MED9.5.10
Continental
- Continental Simos PCR2.1*
Siemens
- Siemens VDO PPD1.1
- Siemens VDO PPD1.2
- Siemens VDO PPD1.3
- Siemens VDO PPD1.5
* Read CS, MAC, POWER CLASS, VIN yourself! Available for FREE in Toolbox section of Immo Bypass!
Get the Emulator installed in your ECU for FREE!
If you have one of the following ECU types, we can install the Emulator for you!
Purchase the Emulator and ship the ECU to us - our Team will install the Emulator in your ECU for FREE and ship it back to you!
ECU types eligible for Free Emulator Installation:
Magneti Marelli
Magneti Marelli 4VH
PSA Group Solutions
Brands: Citroen / Peugeot
Supported ECUs:
Bosch
- Bosch EDC15C2
- Bosch EDC16C3
- Bosch EDC16CP39
- Bosch EDC17C10
- Bosch EDC17C60 Automatic Procedure
- Bosch MD1 Automatic Procedure
- Bosch MD1CS003 Automatic Procedure
- Bosch ME7.4.4
- Bosch ME7.4.5
- Bosch ME7.4.6
- Bosch ME7.4.7
- Bosch MG1CS032 Automatic Procedure
- Bosch MG1CS042 Automatic Procedure
Continental
- Continental VD56.1 Automatic Procedure
Delphi
- Delphi DCM3.4
- Delphi DCM3.5
- Delphi DCM6.2A Automatic Procedure
- Delphi DCM7.1A Automatic Procedure
Magneti Marelli
- Magneti Marelli IAW 48P2.x
- Magneti Marelli IAW 6LPx.x
Sagem
- Sagem S2000
- Sagem S2PM-xxx
Siemens
- Siemens SID 201
- Siemens SID 802
- Siemens SID 803
- Siemens SID 803A
- Siemens SID 804
- Siemens/Continental SID806
- Siemens SID807
Valeo
- Valeo V34.1
- Valeo V46.11
- Valeo VD56.12 Automatic Procedure
Get the Emulator installed in your ECU for FREE!
If you have one of the following ECU types, we can install the Emulator for you!
Purchase the Emulator and ship the ECU to us - our Team will install the Emulator in your ECU for FREE and ship it back to you!
ECU types eligible for Free Emulator Installation:
Bosch
Bosch EDC17CP42
Bosch EDC17
Bosch EDC16C39
Bosch EDC16C8
Bosch EDC16C0
Bosch EDC15C7
Bosch ME795
Bosch MED17
Bosch MED17.4
Bosch MED17.4.2
Magneti Marelli
Magneti Marelli IAW6KPB
Siemens
Siemens SID801
Valeo
Valeo V46.1
Valeo V34.3
Valeo VD46.1
Valeo J34P
Mercedes Solutions
Brands: Mercedes | Chrysler
Supported ECUs:
Bosch
- Bosch CR1.2
- Bosch CR1.7
- Bosch CR2.x (with mechanical ignition switch*)
- Bosch ME2.8 (0 261 207 572 only)
- Bosch ME1.0
- Bosch ME2.0
- Bosch ME2.1
- Bosch M3.4.2
- Bosch M3.4.3
- Bosch M3.4.4
- Bosch MSA 15.1
- Bosch MSA 25.1
- Bosch MSA 25.2
* If your vehicle is equipped with an EZS (electronic ignition switch), purchase Julie MERCEDES Emulator
Lucas
- Lucas ED013
VDO
- VDO MSM
- VDO MSE (white sockets)
- VDO MSE (black sockets)
- VDO MSE (yellow sockets)
Renault Group Solutions
1) IMMO OFF
The following ECUs with CAN transmission are supported by this emulator:
Brands: Renault / Dacia / Nissan / Opel
Supported ECUs:
Bosch
- Bosch EDC15
- Bosch EDC16
- Bosch EDC16C36
- Bosch EDC16CP33
- Bosch EDC17
- Bosch EDC17C42
- Bosch EDC17C84 (ISK Password program available)
- Bosch MD1CS006 (ISK Password program available)
Continental
- Continental EMS3110
- Continental EMS3120 (ISK Password program available)
- Continental EMS3125 (ISK Password program available)
- Continental EMS3140 (ISK Password program available)
- Continental EMS3141 (ISK Password program available)
- Continental EMS3150 (ISK Password program available)
- Continental EMS3155 (ISK Password program available)
- Continental EMS3160 (ISK Password program available)
- Continental EMS3161 (ISK Password program available)
Continental SID305
Continental SID306
Continental SID307
Continental SID309
Continental SID310
Continental SID321 (ISK Password program available)
Delphi
- Delphi DCM1.2
- Delphi DCM3.4
- Delphi DDCR
Hitachi
- Hitachi MEC32-020 -> MEC32-110 (NATS6)
Hitachi MEC32-210 -> MEC32-680 (NATS6)
Hitachi MEC36-xxx (NATS6)
Hitachi MEC37-xxx (NATS6)
Hitachi MEC43-xxx (NATS6)
Hitachi MEC81-730 (NATS6)
Hitachi NEC008-669 (NATS6)
Magneti Marelli
- Magneti Marelli IAW 5NR2
Sagem
- Sagem S2000
- Sagem/Johnson Controls/Valeo S3000
Siemens
- Siemens EMS3125
- Siemens EMS3132
- Siemens EMS3134
- Siemens SID309
- Siemens SID304
- Siemens SID301
- Siemens SIM32
- Siemens Sirius 34
- Siemens Sirius 32
Valeo
- Valeo V40
- Valeo V42
- Valeo V50
- Valeo V50.1
Get the Emulator installed in your ECU for FREE!
If you have one of the following ECU types, we can install the Emulator for you!
Purchase the Emulator and ship the ECU to us - our Team will install the Emulator in your ECU for FREE and ship it back to you!
ECU types eligible for Free Emulator Installation:
Bosch
Bosch EDC17CP58
Bosch EDC17CP19
Bosch EDC17C45
Bosch EDC17C11
Bosch EDC16CP36
Bosch EDC16C9
Bosch EDC16C41
Bosch EDC16C3
Bosch EDC15C13
Bosch EDC15C3
Bosch EDC15C2
Bosch ME17.9.20
Bosch MD1CS0006
Continental
Continental EMS3161
Continental EMS3141
Continental EMS3140
Continental EMS3120
Continental SID321
Hitachi
Hitachi MEC32-100
Hitachi MEC37-510
Hitachi MEC37-670
Hitachi MEC39-090
Hitachi MEC121-780
HI-BED434
HI-MEC92
Magneti Marelli
Magneti Marelli IAW 5NR
Siemens
Siemens EMS 3150
Siemens EMS 3130
Siemens SID 303
2) ESL
You can replace the ESL signal in the following cars:
Renault Captur
Renault Clio III
Renault Clio IV
Renault Espace IV (phase II)
Renault Espace IV (phase III)
Renault Espace IV (2004-2006)
Renault Fluence
Renault Laguna II
Renault Laguna II (lift 2004-2006)
Renault Laguna III
Renault Megane II
Renault Megane II (lift 2004-2006)
Renault Megane III
Renault Scenic II
Renault Scenic III
Renault Talisman
Volvo Solutions
Brands: Volvo
SCL Signal Replacement
- Volvo C30
- Volvo C70 II
- Volvo S40 II
- Volvo S90
- Volvo V50
- Volvo V90
- Volvo XC60 II
- Volvo XC90 II
Only compatible if the SCL is equipped with CAN Transmission
Instruction Manual and full ECU list: https://carlabimmo.com/julie-manual
