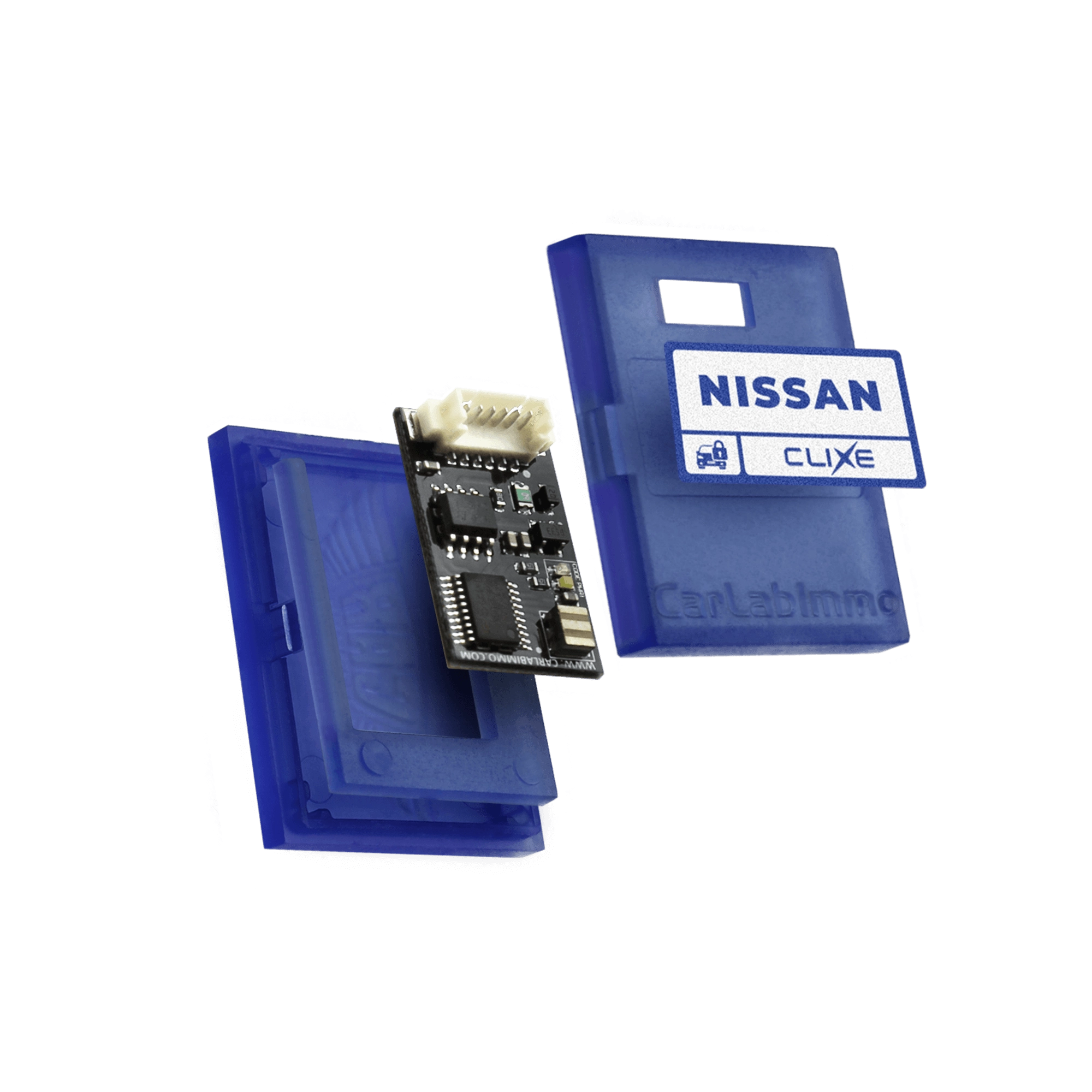

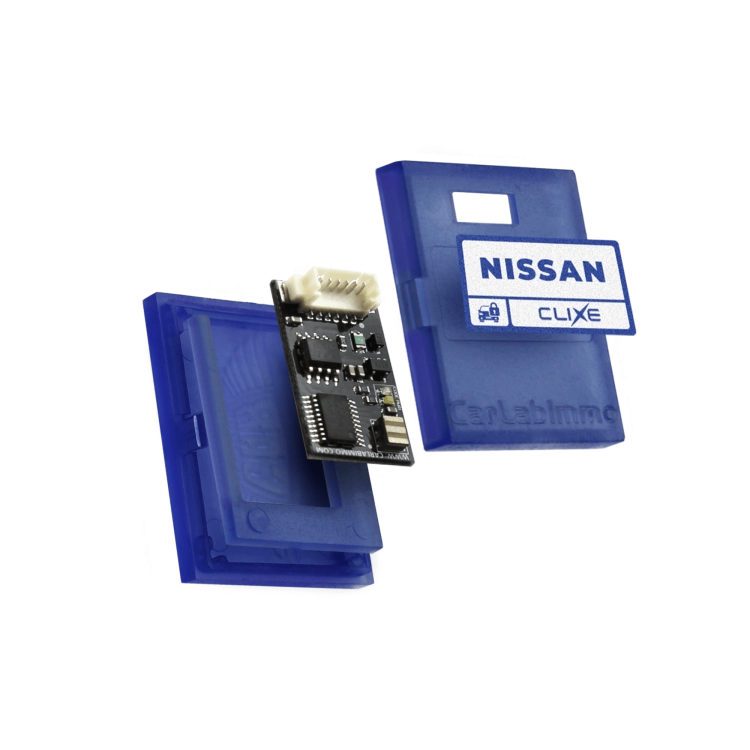

Clixe NISSAN | IMMO OFF Emulator

Availability: In Stock
Dispatched within: 24 hours
Price: €19.90 19.90


Warranty & refunds
quantity pcs.

Description

Usage:

Replace immo in NISSAN cars with immo NATS 4 and 5 (ECUs from 2000 to 2006 year)


 Details:

  • BOSCH EDC15M1-5.x / BOSCH EDC15V1-5.X (5-socket ECU with 24C04 memory)
    •  2.0 / 2.2 / 2.7 / 3.0 diesel engine
  •  HITACHI MEC ECU with 93C46 and 93C56 memory
    • 1.5 gasoline engine
  • HITACHI MEC ECU with 93C56 memory
    • 1.8 / 2.0 gasoline engine
  • BOSCH ECU with 24LC02 memory
    • 1.4 gasoline engine

BOSCH EDC15M1-5.x
BOSCH EDC15V1-5.x

  • Nissan Almera 2.2 Di 110HP 2000-2002
  • Nissan Almera Tino 2.2 Di 114HP 2000-2006
    Nissan Cabstar 3.0 TD 120HP 1997-2007
    Nissan Primera P11 2.0 TD 90HP 1999-2002
    Nissan Terrano II 2.7 TD 125HP 1996-2007

ECU numbers

  • 0 281 020 062 (Nissan Cabstar 3.0 TD 120HP 2005)
  • 0 281 020 061 (Nissan Cabstar 3.0 TD 120HP 2002)
    0 281 011 040 (Nissan Terrano II 2.7 TD 125HP 2002)
    0 281 010 809 (Nissan Almera 2.2 Di 110HP 2002)
    0 281 010 718 (Nissan Almera 2.2 Di 110HP 2002)
    0 281 010 708 (Nissan Almera 2.2 Di 110HP 2001)
    0 281 010 452 (Nissan Cabstar 3.0 TD 120HP 2002)
    0 281 010 316 (Nissan Primera P11 2.0 TD 90HP 2001)
    0 281 010 284 (Nissan Terrano II 2.7 TD 125HP 2002)
    0 281 010 265 (Nissan Almera Tino 2.2 Di 114HP 2003)
    0 281 010 141 (Nissan Almera 2.2 Di 110HP 2003)

HITACHI MECxx.xxx

  • Nissan Almera N16 1.8 114HP 2000-2006
  • Nissan Almera N16 1.5 90HP 2000-2002
  • Nissan Almera Tino 1.8 116HP 2003-2006
  • Nissan Almera Tino 1.8 114HP 2000-2003
  • Nissan Primera P11 2.0 140HP 1999-2002
  • Nissan Primera P11 1.8 113HP 1999-2002

ECU numbers

  • MEC20-705 A1 1404 Y9 (Nissan Almera Tino 1.8 116HP 2005)
  • MEC20-625 B1 2319 YF (Nissan Almera N16 1.8 114HP 2001)
  • MEC20-621 C1 2531 9G (Nissan Almera N16 1.8 114HP 2003)
  • MEC20-625 C1 2502 YF (Nissan Almera N16 1.8 114HP 2002)
  • MEC20-605 B1 1716 YE (Nissan Almera N16 1.5 90HP 2000)
  • MEC20-605 B1 1712 YE (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-605 B1 1705 YE (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-605 B1 1502 YE (Nissan Almera N16 1.5 90HP 2002)
  • MEC20-601 A1 1531 YN (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-601 A1 1227 YN (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-601 B1 1814 ZQ (Nissan Almera N16 1.5 90HP 2002)
  • MEC20-601 B1 1503 ZQ (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-601 B1 1X25 ZQ (Nissan Almera N16 1.5 90HP 2002)
  • MEC20-600 A1 0Y20 1Y (Nissan Almera N16 1.5 90HP 2002)
  • MEC20-600 A1 0Y03 1Y (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-600 A1 0Z19 1Y (Nissan Almera N16 1.5 90HP 2001)
  • MEC20-525 B1 1Y06 ZN (Nissan Primera P11 1.8 113HP 2001)
  • MEC20-505 B1 1913 XU (Nissan Primera P11 1.8 113HP 2001)
  • MEC20-505 B1 1X15 XU (Nissan Almera N16 1.8 114HP 2001)
  • MEC20-500 A1 1111 2T (Nissan Primera P11 1.8 113HP 2001)
  • MEC20-500 A1 0X26 2T (Nissan Primera P11 1.8 113HP 2002)
  • MEC20-500 A1 0X04 2T (Nissan Primera P11 1.8 113HP 2001)
  • MEC20-500 A1 0Z12 2T (Nissan Primera P11 1.8 113HP 2001)
  • MEC20-200 B2 0111 TQ (Nissan Almera N16 1.8 114HP 2000)
  • MEC20-010 A1 9Y12 TL (Nissan Primera P11 1.8 113HP 2002)
  • MEC19-500 A1 1109 0Y (Nissan Primera P11 2.0 140HP 2001)
  • MEC19-500 B1 1614 0Y (Nissan Primera P11 2.0 140HP 2000)
  • MEC19-020 A1 0207 TM (Nissan Primera P11 2.0 140HP 2001)
  • MEC14-315 B1 2416 FM (Nissan Almera Tino 1.8 114HP 2001)
  • MEC13-400 B1 1Y02 YT (Nissan Almera Tino 1.8 114HP 2000)
  • MEC12-040 F5 9Z10 49 (Nissan Primera P11 2.0 140HP 2000)
  • MEC11-230 E2 0516 BP (Nissan Almera Tino 1.8 114HP 2000)
  • MEC11-210 G3 0623 XZ (Nissan Almera 1.8 114HP 2001)
  • MEC11-200 E3 0203 ZE (Nissan Primera P11 1.8 113HP 2001)
  • MEC11-200 F3 0719 XP (Nissan Almera N16 1.5 90HP 2001)
  • MEC11-100 H4 0517 9G (Nissan Primera P11 1.8 113HP 2001)
  • MEC11-100 E4 9818 48 (Nissan Primera P11 1.8 113HP 1998)
  • MEC11-100 E4 9708 48 (Nissan Primera P11 1.8 113HP 2001)
  • MEC11-100 E4 9X21 48 (Nissan Primera P11 1.8 113HP 2000)
  • MEC11-100 F4 9720 48 (Nissan Primera P11 1.8 113HP 2002)
  • MEC11-100 F4 9Y29 ZB (Nissan Primera P11 1.8 113HP 2000)
  • MEC11-100 F4 0229 ZB (Nissan Primera P11 1.8 113HP 2000)

Attention: ECU memory content change required

Learn more from the manual:
DOWNLOAD MANUAL >
