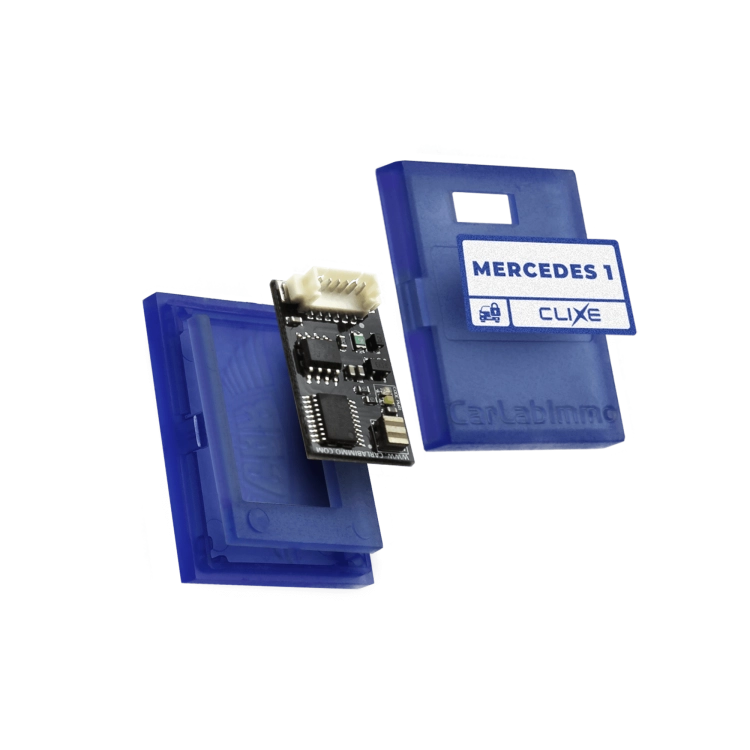

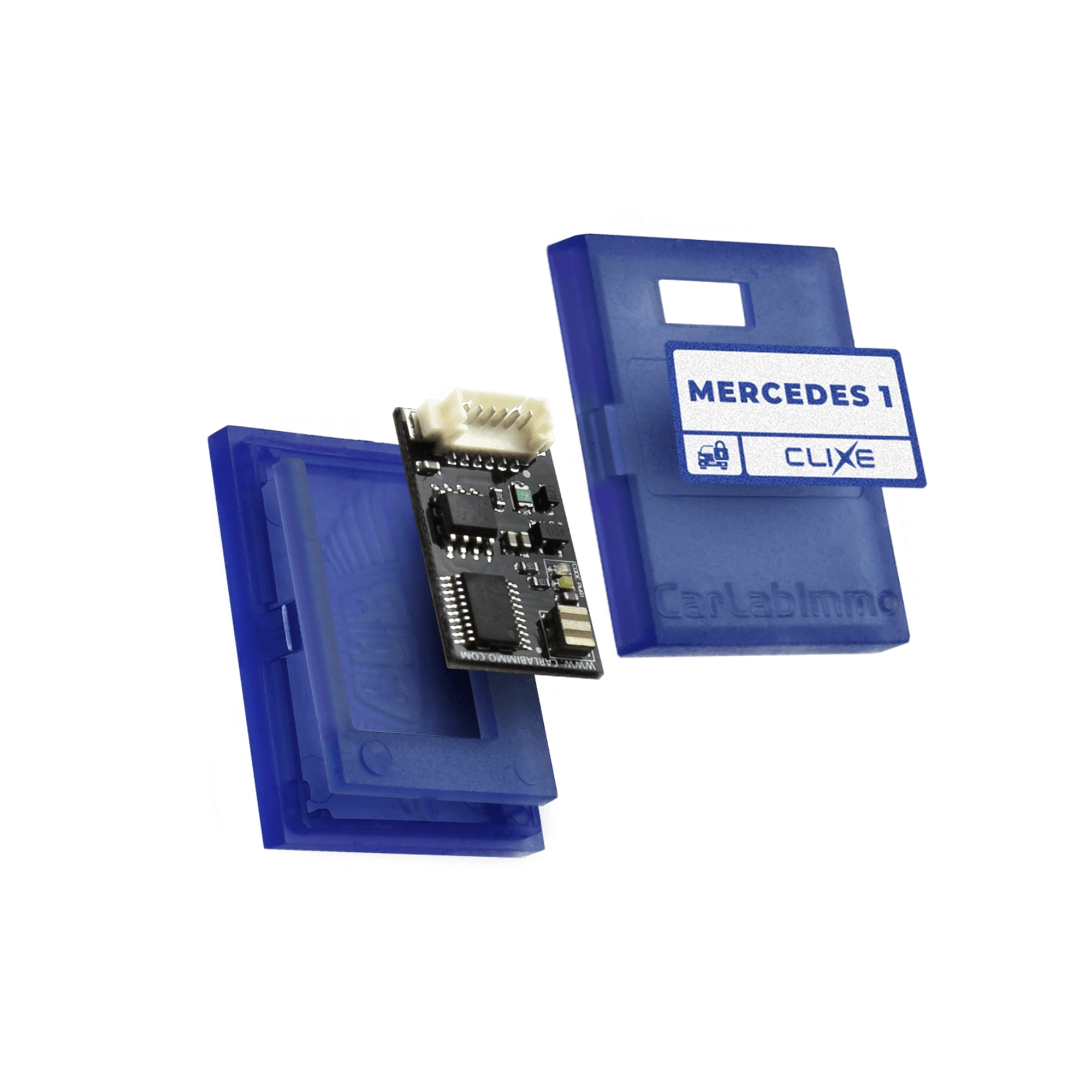

Clixe MERCEDES 1 | IMMO OFF Emulator

Usage:

This emulator works if your car is equipped with:

- an infrared immo box with a 12-pin module and 2-pin CAN (there's no CAN-H, only CAN-L)
- green and red LEDs blink on the door handle and in the rear-view mirror.

Details:

• Bosch PMS
• Lucas ED 0012
• Siemens PMS

Bosch PMS

• Mercedes C-Class (W202) 2.0 136HP 1995-2000
• Mercedes E-Class (W210) 2.0 136HP 1995-2000

ECU numbers

• 0 261 200 614 / 018 545 11 32 (Mercedes E-Class (W210) 2.0 136HP 1996)

Lucas ED 0012

• Mercedes C-Class (W202) 2.2 95HP 1993-1998
• Mercedes E-Class (W210) 2.2 95HP 1995-1998

ECU numbers

• A017 545 46 32 (Mercedes C-Class (W202) 2.2 95HP 1995)
• A016 545 76 32 (Mercedes E-Class (W210) 2.2 95HP 1996)

Siemens PMS

• Mercedes C-Class (W202) 2.0 146HP 1993-1997
• Mercedes C-Class (W202) 1.8 122HP 1993-1997
• Mercedes Sprinter (W901) 2.3 143HP 1995-2000
• Mercedes Vito (W638) 2.3 143HP 1996-2003

ECU numbers

• 0255453432 / 5WK9 171 (Mercedes Sprinter (W901) 2.3 143HP 1998)
• 0215453932 / 5WK9 146 (Mercedes Vito (W638) 2.3 143 HP 1996)
• 0205456532 / 5WK9 137 (Mercedes Vito (W638) 2.3 143 HP 1998)
• 0185455632 / 5WK9 131 (Mercedes C-Class (W202) 1.8 122 HP 1994)
• 0185454432 / 5WK9 127 (Mercedes C-Class (W202) 1.8 122 HP 1994)
• 0185454332 / 5WK9 126 (Mercedes C-Class (W202) 2.0 136 HP 1994)
• 0185454232 / 5WK9 125 (Mercedes C-Class (W202) 2.0 136 HP 1994)
• 0185454132 / 5WK9 124 (Mercedes C-Class (W202) 2.0 136 HP 1994)
• 0185450332 / 5WK9 121 (Mercedes C-Class (W202) 1.8 122 HP 1994)
• 0185450232 / 5WK9 120 (Mercedes C-Class (W202) 1.8 122 HP 1993)
• 0165450632 / 5WK9 111 (Mercedes C-Class (W202) 2.0 136 HP 1994)
• 0155457332 / 5WK9 113 (Mercedes C-Class (W202) 1.8 122 HP 1993)
• 0155457232 / 5WK9 112 (Mercedes C-Class (W202) 1.8 122 HP 1993)
• 0155457032 / 5WK9 110 Mercedes C-Class (W202) 1.8 122 HP 1995)

Attention: The emulator self-learns the ECU code

Learn more from the manual:
DOWNLOAD MANUAL >
